what do lateral markers indicate? arizona boat course ed

by Kathryn Murray Published 2 years ago Updated 1 year ago 7 min read

What do you lateral markers indicate?

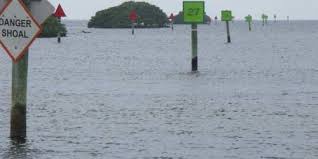

Lateral markers are buoys and other markers that indicate the edges of safe water areas. Green colors, green lights, and odd numbers mark the edge of a channel on your port (left) side as you enter from open sea or head upstream.

What do lateral markers indicate quizlet?

They mark the edge of the channel on your port (left) side when entering from the open sea or heading upstream. These buoys use the lateral marker shapes, colors, and they have a matching colored light. These are permanently placed signs attached to structures, such as posts, in the water.

What color is a marker that indicates safe water on all sides boat Ed?

Safe Water Markers: These are white with red vertical stripes and indicate unobstructed water on all sides. They mark mid-channels or fairways and may be passed on either side.

What do red and green markers indicate boating?

All Red and Green markers provide safety with lateral significance. That is, the red and green markers tell boaters to pass on one side or the other safely. Reading the markers and knowing WHICH side is paramount! Only red and green markers provide “sides to pass on” (lateral information).Oct 24, 2017

What do lateral markers indicate PWC?

These navigation aids mark the edges of safe water areas; for example, directing travel within a channel. The markers use a combination of colors and numbers, which may appear on either buoys or permanently placed markers.

What does this non-lateral marker indicate?

Non-lateral markers are navigation aids that give information other than the edges of safe water areas. The most common are regulatory markers that are white and use orange markings and black lettering. They are found on lakes and rivers.

What side of the channel markers do you stay on?

Basically, red marker buoys should be on your right (starboard) as you return from open water. Conversely, green channel markers should be on your starboard side as you head out into open water.Aug 4, 2020

What does this orange diamond non lateral marker indicate?

Purpose: Keep Out Buoys mark an area of water where boating is prohibited. They are white in color, with an orange diamond containing an orange cross on two opposite sides, and two orange horizontal bands one above and one below the diamond symbol.

What marker is used to warn boaters?

Cautionary Buoys are used to warn mariners of dangers such as firing ranges, race courses, seaplane bases, traffic separations, underwater structures and areas where no safe through channel exists. Yellow in colour they carry an identification mark, or letter. If they have a topmark, it is a single yellow "X" shape.

What are cardinal and lateral marks?

The Lateral System is the most common with its red and green buoys. The Cardinal System is used to mark safe water near a danger and features yellow and black buoys. Other aids are used to guide pleasure craft operators and special purpose buoys offer specific information.

What does a yellow channel marker mean?

1790. Aids to Navigation marking the Intracoastal Waterway (ICW) display unique yellow symbols to distinguish them from aids marking other waters. Yellow triangles e aids should be passed by keeping them on the starboard (right) hand of the vessel.

What side should a green buoy be on?

left

Likewise, green buoys are kept to the port (left) side (see chart below). Conversely, when proceeding toward the sea or leaving port, red buoys are kept to port side and green buoys to the starboard side. Red buoys are always even numbered, and green buoys are odd numbered.

What color is the edge of the channel on your starboard side?

Red Colors, Red Lights, and Even Numbers: These mark the edge of the channel on your starboard (right) side as you enter from the open sea or head upstream. Numbers usually will increase consecutively as you return from the open sea or head upstream.

What color is the preferred channel?

Red and Green Colors and/or Lights: These are placed at the junction of two channels to indicate the preferred (primary) channel when a channel splits. If green is on top, the preferred channel is to the right. If red is on top, the preferred channel is to the left.

What does a marker on a shoreline mean?

These markers indicate an obstruction which is concealed underwater. Never pass between this marker and the shoreline. These markers indicate areas of safe water. These markers assist one by displaying the water which is safe to navigate and by marking the presence of channel entrances, channel centers or landfalls.

What are non lateral markers?

Non-lateral markers will assist operation by providing information about the area, as boating. Here are a few examples of common non-lateral markers. These regulatory markers can be distinguished by their orange markings. These markers indicate rules or restrictions which apply to the area.

What do orange markers do?

These markers give directions, distances, and locations. One may use the information found inside the square to guide navigation. These markers feature orange squares.

What does a diamond marker mean?

These markers indicate a prohibited area which is closed off. For instance, these areas could be sectioned off swim areas or areas with fragile wildlife. Either way, steer clear and never cross these boundaries. These markers feature a diamond with an orange cross.

What are the daymarks on a boat?

These are permanently placed signs attached to structures, such as posts, in the water. Common daymarks are red triangles (equivalent to nuns) and green squares (equivalent to cans). These may be lighted also.

What are buoys and markers?

Buoys and markers are the "traffic signals" that guide vessel operators safely along some waterways. They also identify dangerous or controlled areas and give directions and information. As a recreational boat or PWC operator, you will need to know the lateral navigation markers and non-lateral markers of the U.S. Aids to Navigation System.

What is the red line on a buoy?

These cone-shaped buoys are always marked with red markings and even numbers. They mark the edge of the channel on your starboard (right) side when entering from the open sea or heading upstream.

What do green buoys mean?

These cylindrical-shaped buoys are always marked with green markings and odd numbers. They mark the edge of the channel on your port (left) side when entering from the open sea or heading upstream.

Where are regulatory markers found?

These markers are found on lakes and rivers and are navigation aids that give information other than the edges of safe water areas. The most common are regulatory markers that are white and use orange markings and black lettering.

Where are the blue buoys?

These are white with a blue horizontal band. They usually are placed in marinas and other areas where boats are allowed to anchor. These are the only buoys you may tie up to legally.

What color is the edge of the channel?

Green Colors, Green Lights, and Odd Numbers. These mark the edge of the channel on your port (left) side as you enter from the open sea or head upstream. Numbers usually will increase consecutively as you return from the open sea or head upstream. Red and Green Colors and/or Lights.

Where are the lateral markers in the water?

Not-lateral markers and buoys can be found anywhere in the water. Lateral markers are the red and green buoys that indicate the edges of safe areas in the water. When you return from sea to port or a harbor the green lateral markers will be on your port side. The red later markers will be to starboard.

Where is the boat exclusion area?

Boat Exclusion Area: Explanation may be placed outside the crossed diamond shape, such as dam, rapids, swim area, etc. This is located on what is called a keep out buoy or an exclusion buoy.

What is a swimming buoy?

A swimming buoy is an all-white marker. Sometimes these will also have lights on them. A yellow light will flash every four second. As the name suggests a swim marker marks a designated swimming area. These are often small and linked together by buoyant ropes. They are used to rope off an area often the size and shape of a swimming pool in open water.

What does an obstruction marker mean?

Their presence indicates an obstruction to navigation. That means a hidden hazard below the water. You should never pass between an obstruction marker and the shore.

What are regulatory markers?

Regulatory markers are used to advise you of situations, dangers, or directions. They may indicate shoals, swim areas, speed zones, etc. They can be easily identified by the orange bands on the top and bottom of each buoy. On the water, you will find these markers posted on the sides of buoys to aid in navigation.

What does the orange diamond mean in a regulatory marker?

Hazard Markers. These regulatory markers feature an orange diamond. That symbol indicates you need to be cautious. The marker will likely also indicate the nature of the hazard. For instance it may be warning you of shoals or rocks. Use the information provided to avoid the hazard indicated.

What does a keep out marker mean?

Keep-out markers indicate that an area should be avoided. That means anything from a swimming area to an area with endangered wildlife. There may be other reasons for this regulatory marker as well. Avoid these areas and do not cross the boundaries.
